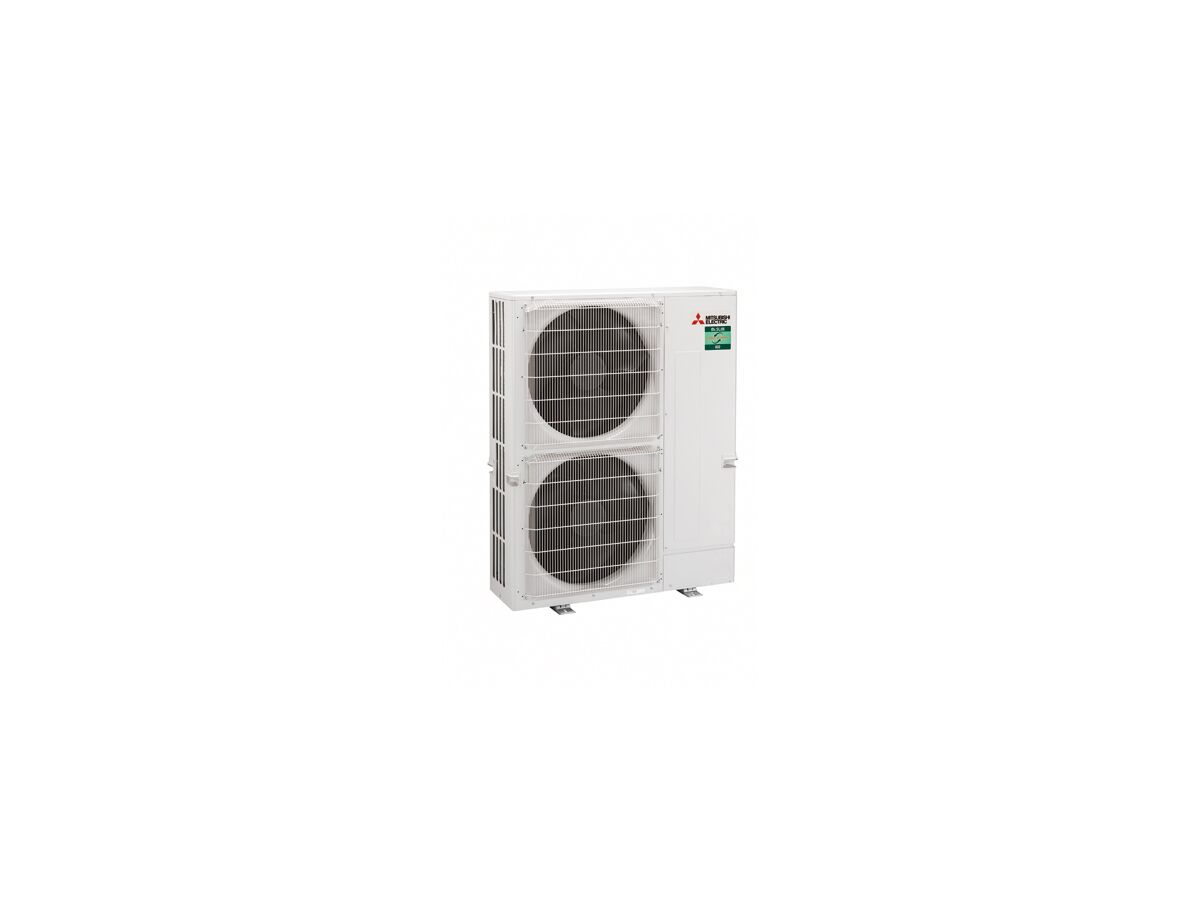

Mitsubishi Electric Outdoor 1PH 12.5kWPUZ-ZM125V
Product code:
3201972
View Product Specifications
Product Specifications
Documents and Downloads
Back
Liquid Connection Size
3/8 "
Gas Connection Size
5/8 "
Outdoor Unit Height
1338 mm
Outdoor Unit Width
1050 mm
Outdoor Unit Depth
330 mm
Outdoor Unit Weight
113 kg
Cooling Capacity
12.5 kW
Heating Capacity
14 kW
Phase
Single Phase
Nominal Power Supply
230V AC
Maximum Pipe Length
75 m
Maximum Height Difference
30 m
