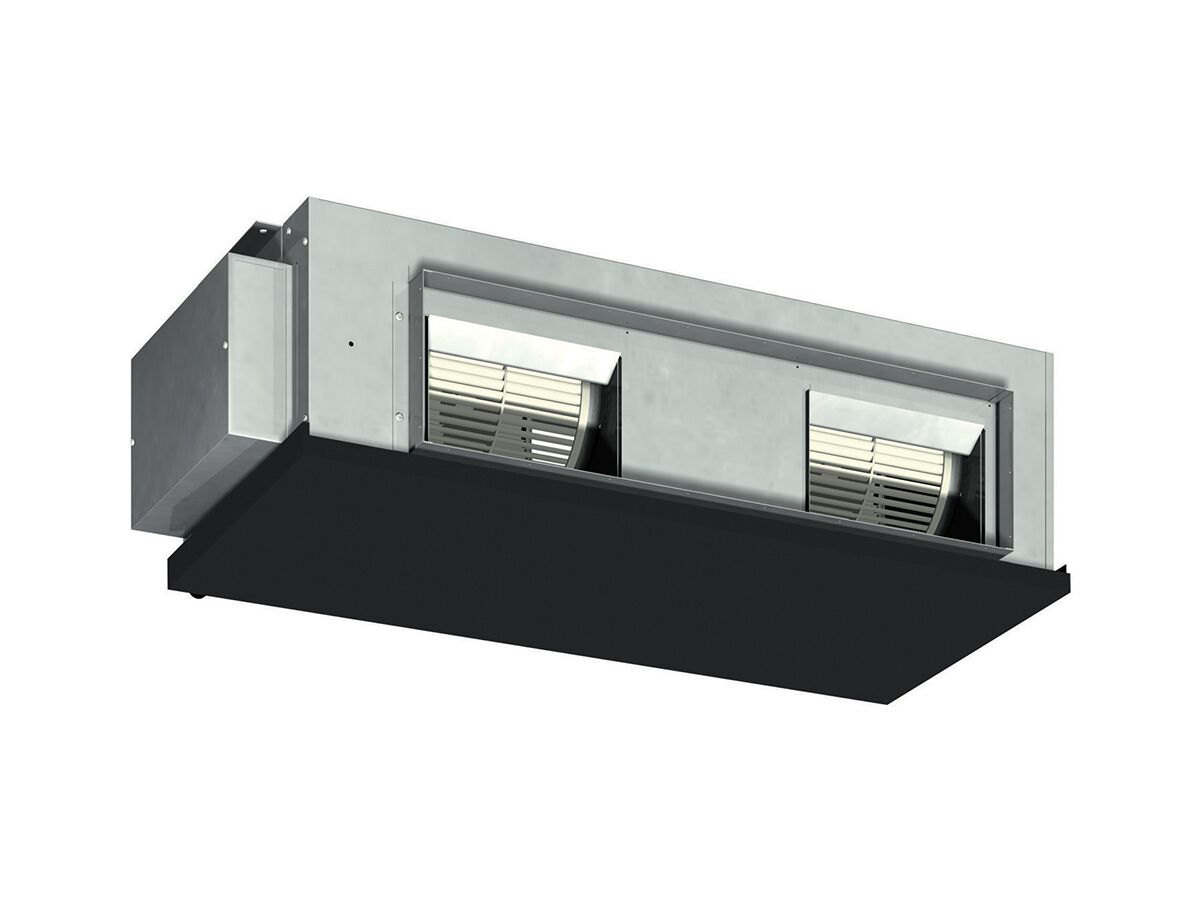

Mitsubishi Electric 10.0kW Ducted Air Conditioner PEA-M100 Kit 1PH
Product code:
3102356
View Product Specifications
Product Specifications
Documents and Downloads
Back
Liquid Connection Size
3/8 "
Gas Connection Size
5/8 "
Indoor Unit Height
400 mm
Indoor Unit Width
1400 mm
Indoor Unit Depth
634 mm
Outdoor Unit Height
1338 mm
Outdoor Unit Width
1050 mm
Outdoor Unit Depth
330 mm
Indoor Unit Weight
63 kg
Outdoor Unit Weight
113 kg
Cooling Capacity
10 kW
Heating Capacity
11.2 kW
Phase
Single Phase
Nominal Power Supply
230V AC
Maximum Pipe Length
75 m
Maximum Height Difference
30 m
