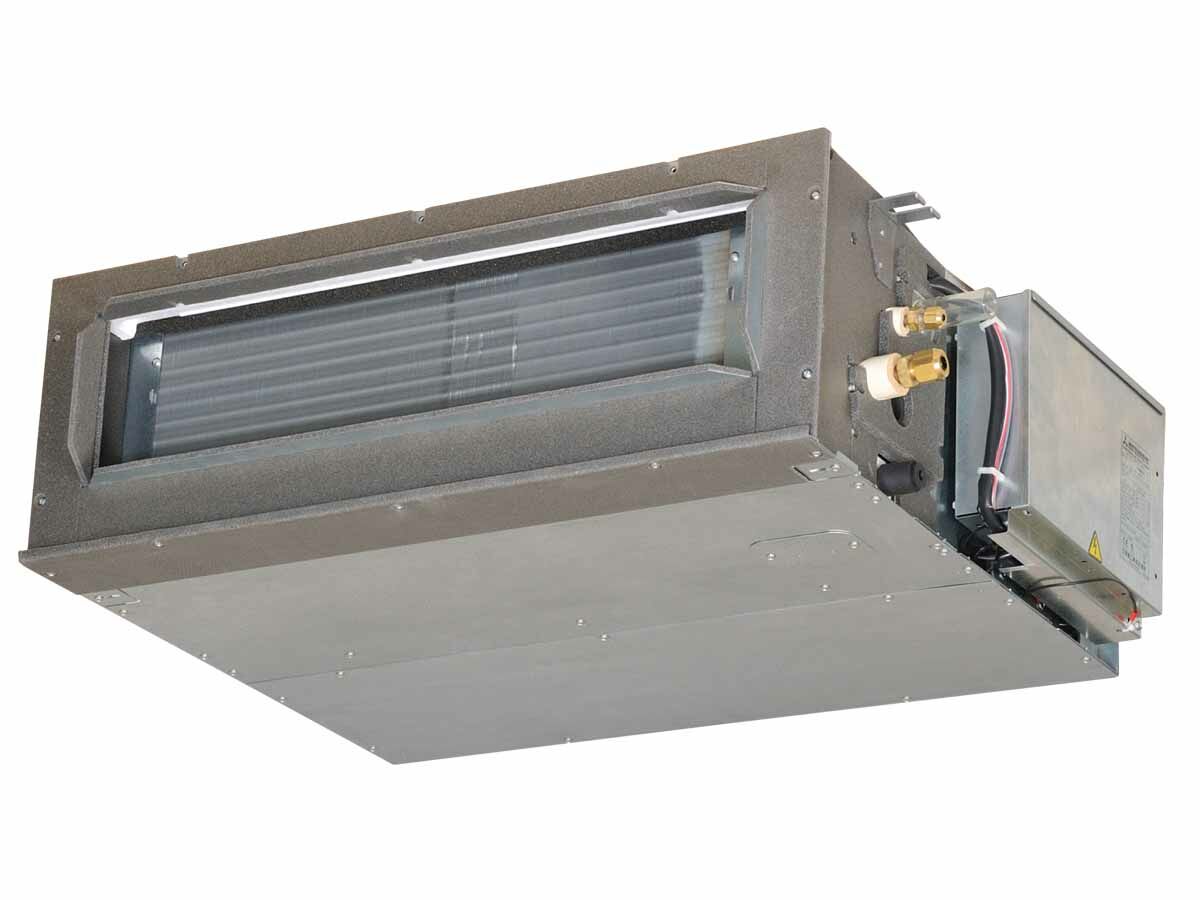

MHI Ducted Medium Static FDUM

MHI Multi Head Ducted Indoor FDUM100VF1

Product code: 1602687

View Product Specifications

Mitsubishi Heavy Industries

Ceiling suspended RAC indoor unit with a nominal cooling capacity of 10.0 kW.

MHI Ducted Medium Static FDUM

MHI Ducted Medium Static FDUM

Size and Dimensions

Connection Size (Liquid)	3/8"
Connection Size (Gas)	5/8"
Indoor Unit Height	280 mm
Indoor Unit Depth	740 mm
Indoor Unit Width	1370 mm
Indoor Unit Weight	54 kg
Maximum Pipe Length	50 mtr

Features

	P-Hi:600 Hi:467 Me:417 Lo:317

Technical Information

Refrigerant Type	R410a
Cooling Capacity (kW)	10 kW
Cooling Capacity (Min-Max)	4.0-11.2kW
Heating Capacity (kW)	11.2 kW
Heating Capacity (Min-Max)	4.0-12.5kW
Phase	1
Return Transition	235 x 1280
Supply Transition	170 x 1200
VBIS Tag	ME-ACFCU-DX-DIC

Power Information

Power Supply	240V

MHI Ducted brochure 2020 View

Brochures

MHI Ducted brochure 2020 View
