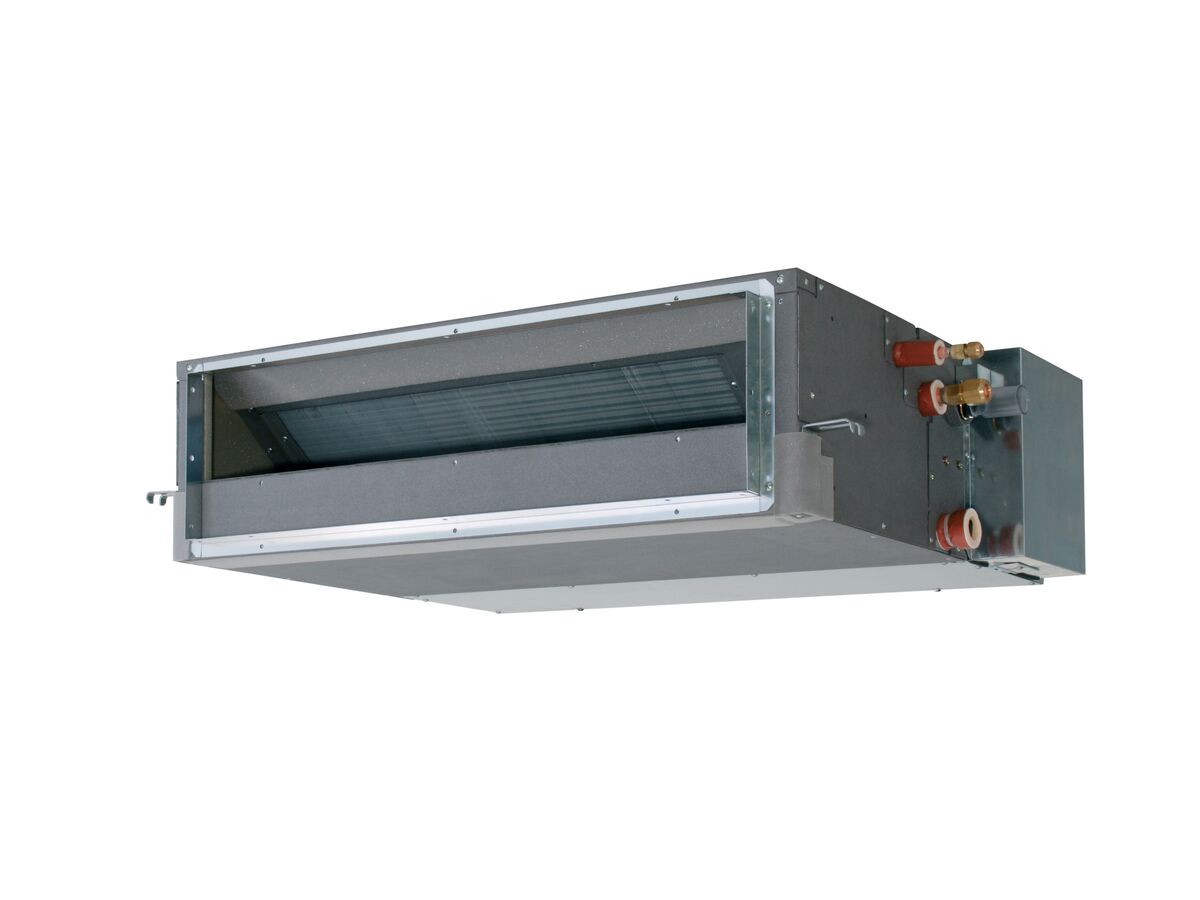

Hitachi Ducted 1PH 5.0kW RAD-E50YHA
Product code:
2712904
View Product Specifications
Product Specifications
Back
Size and Dimensions
Connection Size (Liquid)
1/4"
Connection Size (Gas)
1/2"
Indoor Unit Height
270 mm
Indoor Unit Width
900 mm
Indoor Unit Depth
720 mm
Indoor Unit Weight
35 kg
Outdoor Unit Height
750 mm
Outdoor Unit Width
850 mm
Outdoor Unit Depth
298 mm
Outdoor Unit Weight
50 kg
Pre-charged Pipe Length
30 mtr
Maximum Pipe Length
30 mtr
Maximum Height Difference
20 mtr
Inclusions and Exclusions
Inclusions
RAD-E50YHA
RAC-E50YHA
General Information
Part Number
RAD-E50YHA KIT
Product Type
Ducted Air Conditioners
Technical Information
Refrigerant Type
R32
Cooling Capacity (kW)
5 kW
Cooling Capacity (Min-Max)
1.2 - 5.8 kW
Heating Capacity (kW)
6 kW
Heating Capacity (Min-Max)
1.2 - 6.8 kW
AEER/EER (Rated Conditions)
3.82
ACOP/COP (Rated Conditions)
3.9
Phase
1
Return Transition
815 x 221mm
Supply Transition
805 x 222mm
Power Information
Full Load Amps
12 A
Power Supply
220-240V
Hitachi Ducted 1PH 5.0kW RAD-E50YHA
