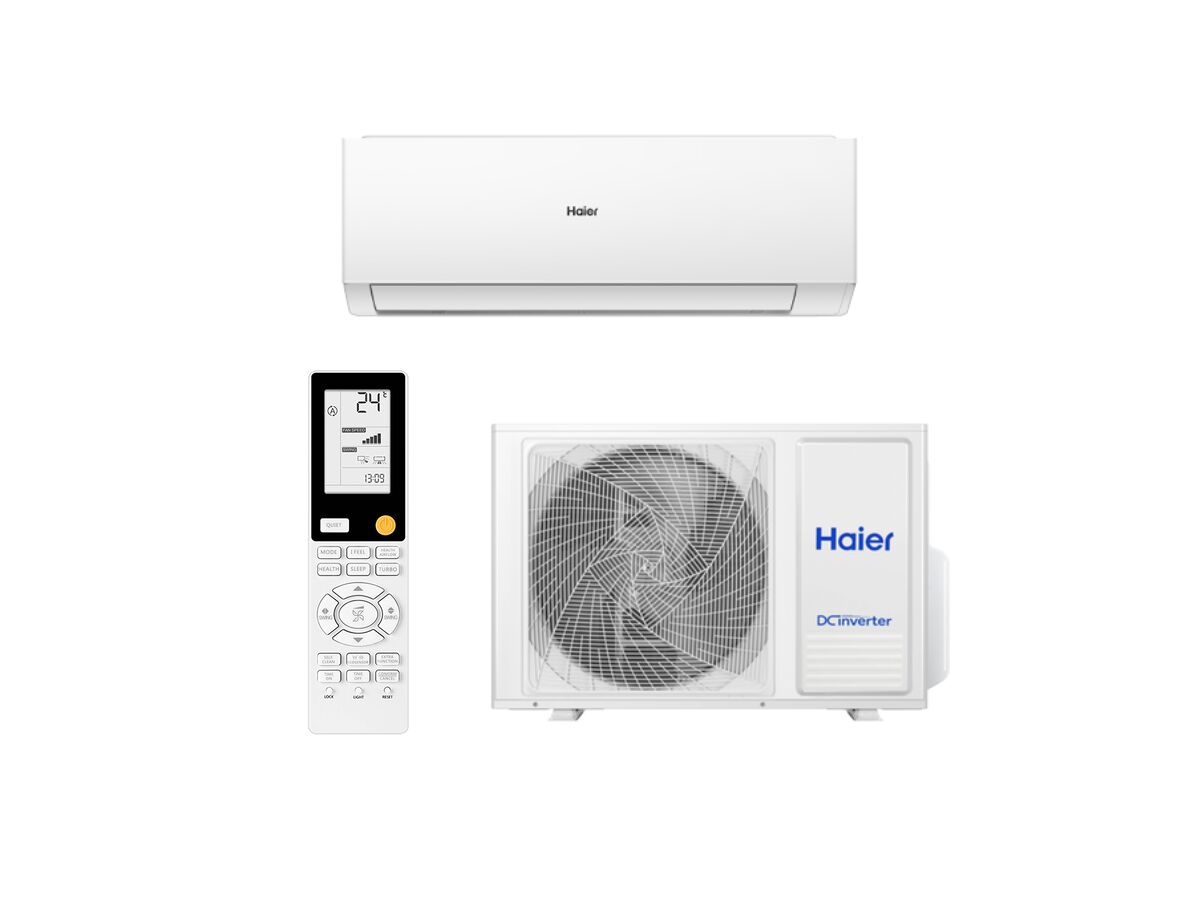

Haier Quartz Plus 2.5kW Wall Hung Split System Air Conditioner Kit from Reece

Installation	Internal & External
Heating & Cooling Product Type	Wall Mounted Air Conditioner
Refrigerant Type	R32
Model Number	AS25QCFHRA-SET
Liquid Connection Size	1/4 "
Gas Connection Size	3/8 "
Indoor Unit Height	307 mm
Indoor Unit Width	875 mm
Indoor Unit Depth	217 mm
Outdoor Unit Height	553 mm
Outdoor Unit Width	800 mm
Outdoor Unit Depth	275 mm
Indoor Unit Weight	10 kg
Outdoor Unit Weight	30 kg
Cooling Capacity	2.5 kW
Cooling Input	0.49 kW
Heating Capacity	3.2 kW
Heating Input	0.69 kW
Phase	Single Phase
Nominal Power Supply	220 - 240V 50Hz
Maximum Pipe Length	15 m
Maximum Height Difference	10 m
Cooling Star Rating (Hot)	7
Cooling Star Rating (Average)	6
Cooling Star Rating (Cold)	6
Heating Star Rating (Hot)	4
Heating Star Rating (Average)	3.5
Heating Star Rating (Cold)	3
